Products
DALIbyDesign does not endorse any products listed below or take responsibility for the information provided either below or on a listed organization’s web site. This section of this website is for information purposes only.
Ballasts Advance |
Incandescent Dimmers B+L Technologies Controls, software, accessories Beckhoff |
Light fixtures Brightlines Track Lighting Emergency Lighting |
BALLASTS
DALI-compatible product: ROVR ballasts
Advance Transformer’s ROVR series of DALI-compatible fluorescent lamp ballasts, available in models for
compact fluorescent, T5HO and 4-lamp T8 fluorescent lamps, are designed to provide full-range dimming capability and simple control wiring. The inclusion of Advance’s exclusive IntelliVolt multiple-voltage technology enables operation at any input voltage from 120 to 277 volts, 50/60Hz.
Click here for more information.
Return to top
DALI-compatible product: EL-si/DIGIDIM DALI ballast, Digital CFL ballast
Helvar’s EL-si digital DALI ballast provides smooth dimming from 100% to 1% for linear fluorescent lamps and is compatible with any DALI-compatible lighting control system, such as those produced by Helvar. The DIGIDIM input includes a DALI power supply, which can provide limited power for components in a DALI system and thereby eliminate the requirement for a central DALI power supply. Helvar also offers a DALI-compatible compact fluorescent ballast that provides a 100% to 3% dimming range.
Click here for more information.
Return to top
DALI-compatible product: Lumenergi DALI ballasts
Lumenergi’s iB-100 ballast is the first universally interoperable ballast, compatible with the company's Lighting Management Control System and other manufacturers' control systems. The ballast can operate in either industry-standard low voltage 0-10VDC or DALI control modes, and takes a wide-range of electrical inputs, ranging from 120V to 277V and even 48VDC for emergency lighting applications.
Click here for more information.
Return to top

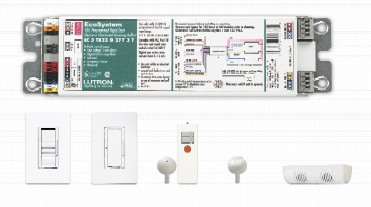

DALI-compatible product: EcoSystem
Lutron Electronics Co., Inc.'s EcoSystem fluorescent lighting control solution is built upon the EcoSystem
ballast, which connects directly to photocells, infrared (IR) receivers, occupant sensors and wallstations, without interfaces, power packs or controllers. The intelligent EcoSystem ballast interprets data collected by the sensors and wallstations, adjusts light levels accordingly and then transmits the information to other ballasts.
The EcoSystem ballast replaces the non-dim ballast in a fixture. Once the appropriate sensors are connected to the ballast, these fixtures can be grouped together, forming uniquely-controlled communities within the larger lighting control system. The EcoSystem solution is designed to make lighting control simple to design from one ballast in one fixture, to many fixtures, to an entire building or campus of buildings. To integrate the EcoSystem family with other building management systems, connect its intelligent power supply to Lutron’s GRAFIK 7000 centralized lighting control system for total building control.
Click here for more information.
Return to top
DALI-compatible product: QUICKTRONIC DALI
OSRAM SYLVANIA’s Quicktronic DALI dimmable linear electronic ballasts can control 1 or 2 T8, T5 and T5HO
lamps, operating from 120V through 277V, over a dimming range of 100% to 1%. Models are also available for dimming of compact fluorescent lamps for dimming from 100% to 3%. Quicktronic DALI is covered by the company’s Quick 60+ warranty.
Click here for more information.
Return to top
DALI-compatible product: PCA EXCEL one4all Digital Ballasts
TridonicAtco’s PCA EXCEL one4all digital ballasts are programmed-start high-frequency dimmable electronic
ballasts available as 1- and 2-lamp models for operation of T5, T8 and compact fluorescent lamps, with a dimming range of 100% to 1% for linear lamps and 100% to 3% for compact fluorescent lamps. The ballasts can be operated either with AC or DC power, enabling potential for emergency lighting, with memory storage of the last light level prior to a power outage.
These ballasts offer an expansive feature set: The ballast’s “smart heating” concept provides good lamp management, the Intelligent Voltage Guard feature provides a preventive measure against undervoltages and overvoltages, and the Intelligent Temperature Guard feature monitors the ballast temperature to prevent it from being damaged by excess heat. Additional features include compatibility with the Digital Serial Interface (DSI) protocol, ability to be used with a momentary contact pushbutton switch at line voltage for ON/OFF and raise/lower functions, and the “corridor function”—by using an occupancy sensor at line voltage, the ballast can slowly dim the lights when the room becomes unoccupied.
Click here for more information.
Return to top
Universal Lighting Technologies
DALI-compatible product: DaliPRO
Universal Lighting Technologies’ DaliPro ballasts are
available for T5, T5HO and T8 linear fluorescent lamps as well as 18W–42W compact fluorescent and 40W twin-tube lamps. DaliPro offers continuous dimming capabilities from 100% to 1% for linear lamps and 100% to 3% for compact fluorescent lamps. To aid installation, DaliPro ballasts feature universal input voltage and simple plug-in wire connectors.
Click here for more information.
Return to top
INCANDESCENT DIMMERS
DALI-compatible product: DALI Star Series electronic transformer
The DALI Star Series electronic transformer is designed specifically to operate 12V halogen lamps in a DALI network with DALI controllers.
Click here for more information.
Return to top
DALI-compatible products: TR51 dual-channel, 600W incandescent dimmer
Starfield Controls’ two-channel 120VAC incandescent dimmer interfaces with standard DALI dimmers, scene,
ON/OFF and other controls. The two channels are independent, with unique DALI addresses and settings. Compatible with magnetic low-voltage transformers and electronic transformers that accept trailing-edge waveforms. Can be controlled in conjunction with fluorescent lamps.
Click here for more information (PDF).
Return to top
CONTROLS & SOFTWARE
DALI-compatible product: KL6811 power supply and Ethernet-DALI gateway
Beckhoff’s KL6811 DALI/DSI master and power supply terminal enables the connection of up to 64 DALI slaves to the company’s building automation system that can then be configured via a PC using the company’s KS2000 software. The PC is directly coupled with a DALI bus via an RS232 interface or via the field bus. The integrated power supply unit generates an electrically isolated output voltage of 24V DC. No further components are required for the operation of the DALI slaves. The KL6811 operates field bus-independent. Also available is the BC9000 module, which provides a TCP/IP interface to the KL6811 DALI module.
Click here for more information.
Return to top
Creative Lighting
DALI-compatible products: DALI controllers, DALI tools, DALI power supplies, DALI relays, DALI gateways, DALI serial communications interfaces, DALI LED dimmers, DALI DMX512 interfaces
The DIDIO is a modular DALI controller available in several different models. Every DIDIO is 4-pole DIN mount, 24V DC in, features removable terminals for easy wiring, and can have up to 3 pcb
modules plus the DIDIO control pcb in the one DIN enclosure. The SLAMMO is a high-capacity 3-channel dimmer for LEDs. The LIDA v1.04 is a DALI-compliant pcb that provides DALI control of HID luminaires with lamp failure feedback reporting. The ADDICT makes standard DALI commissioning and testing incredibly easy. It is a portable and robust tool, with a protective rubber boot and flip out stand. It has become virtually the default standard in Australia, where it is made by Creative Lighting, with major OEM customers, systems integrators and end users alike choosing the ADDICT.
Click here for more information.
Return to top
DALI-compatible products: DALI CONTROL and Monitor Software
DALI CONTROL, an Australian company, develops controllers and
software for building management and process control applications using industry standard technologies and the latest development languages for Microsoft Windows 32-bit operating systems and the Internet. The company’s controllers/gateways are designed with Ethernet networking capabilities, making them well-suited for use on local area networks (LAN), wide area networks (WAN) and the Internet. They also support building networks using DALI and RS485 systems.
Click here for more information.
Return to top
DALI-compatible products: Wired and wireless digital lighting controls
Exergy Controls' intelligent lighting management system is designed to streamline installation costs, enable users to select light levels as needed, reduce lighting energy costs by an average of 30+%, and manage peak demand via load shedding and demand response. Exergy ’s digital fixture assignment permits zones to be created virtually, allowing groups of fixtures to run in opposing directions.
Click here for more information.
Return to top
DALI-compatible products: DIGIDIM Control System, Modular Panels, Power Supply, Serial Interface, Blinds Controller, Relay Unit, SDIM Converter, Multi-Sensors, IR Remote Control
Helvar offers the DIGIDIM DALI-compatible control system, complete with digital ballasts and controls
including modular panels, occupancy/photosensors and IR remote controls. Accessories include a power supply designed to provide the DIGIDIM system with the required supply of up to 250 mA; a PC serial interface so that DIGIDIM DALI systems can be set up and programmed from a PC; blinds controller, which allows blinds and curtains to be incorporated into the control system; relay unit, which enables non-dimmable loads to be incorporated into the system; and SDIM converter, which integrates the system with products that use Helvar’s SDIM protocol. For programming the system, Helvar’s DIGIDIM Toolbox software is available.
Click here for more information.
Return to top
DALI-compatible products: CD100-D0 DALI power supply, CD250-C DALI controller
Leviton’s CD100-D0 provides a DALI-compatible power pack to power a digital DALI-based bus. For use with DALI-compatible dimmer input voltage 120/277 VAC +/-10% with a 12V output voltage and 110 mA output current.
The CD250-C is a DALI-compatible controller that provides ON/OFF, dimming and scene control functions for use with DALI-compatible ballasts.
Click here for more information.
Return to top
DALI-compatible product: DT5 Interface
Luella Enterprises' DALitalkerV (DT5) interface allows DALI systems and conventional DMX dimmers to work together sharing the same DALI-
based controls. The DALI presets are stored within the DALI ballasts, which are configured and programmed by the DALI control stations as normal. The DMX presets are stored within the DT5 interface and are programmed by any DMX device using Luella's DMX snapshot mode firmware. Once the presets are programmed, both the DMX and DALI scenes are recalled together by the same DALI control stations. This solution is well suited to applications using a mix of conventional dimmers and fixtures and DALI fixtures. (Most conventional dimmers today are DMX compatible, but any non-DMX dimmers can be converted to DMX, according to the company.)
There are three advantages for this product, according to Luella. First, it allows industry-standard DALI-based controls from multiple manufacturers to be used together to control both DALI and DMX preset systems. Second, low-end to high-end controls are now available for the DALI protocol. And third, it offers an inexpensive multiple room combination capability due to the nature of the DALI protocol.
Click here for more information.
Return to top
DALI-compatible product: Lighting Management Control System Controllers
Lumenergi's LMCS Controller houses a high-reliability embedded Single Board Computer (SBC) system that also provides input and output connectors for lighting management and control. Output controls include 32 DALI streams with 2048 DALI ballast address capability. Controllers, in turn, can be networked to build a Lighting Management Control System. Each Controller can vary lamp brightness over a continuous range from OFF to 100%. In lamp zones where photosensors are also installed, the LMCS Controller periodically samples the measured illumination within the zone and adjusts accordingly to provide the right light levels. The LMCS Controller, in conjunction with the LMCS Remote Server, dynamically maintains a fluid but preset lighting level range regardless of variations within the space.
DALI-compatible product: EcoSystem
Lutron Electronics Co., Inc.'s EcoSystem fluorescent lighting control solutions create fluorescent lighting control systems with a simple building block architecture of EcoSystem fluorescent dimming ballasts, EcoSystem sensors and EcoSystem controls, free from interfaces and power packs. EcoSystem is built upon the EcoSystem ballast, which connects directly to photocells, infrared (IR) receivers, occupant sensors and wallstations, without interfaces, power packs or controllers. The intelligent EcoSystem ballast interprets data collected by the sensors and wallstations, adjusts light levels accordingly and then transmits the information to other ballasts.
The EcoSystem ballast replaces the non-dim ballast in a fixture. Once the appropriate sensors are connected to the ballast, these fixtures can be grouped together, forming uniquely-controlled communities within the larger lighting control system. The EcoSystem solution is designed to make lighting control simple to design from one ballast in one fixture, to many fixtures, to an entire building or campus of buildings. To integrate the EcoSystem family with other building management systems, connect its intelligent power supply to Lutron’s GRAFIK 7000 centralized lighting control system for total building control.
Click here for more information.
Return to top
DALI-compatible product: DALI Wireless Converter
Spire Lighting offers a complete line of DALI-compatible exit signs and emergency lighting fixtures. Spire Lighting's DALI Wireless converter from Spire Lighting, available December 2007, is designed to work seamlessly within the DALI framework. Utilizing Spire lighting custom application specific ICs, this unique product contains a 10mA selectable DALI power supply for installations where only 1 or a few DALI devices are connected to the bus. On installations where more devices are connected to the same physical bus wires a additional DALI power supply can be connected. The Wireless converter has a small profile and can be included inside the fixture easily. Its antenna can be removed and wired externally for metal enclosures, while OEMS have a choice of antenna options. Some applications that the DALI wireless converter suits include entire building retrofits, adding dimming to existing light fixtures, for DALI commissioning, to reach areas that are difficult to wire, and to achieve wireless lighting.
Click here for more information
Return to top
DALI-compatible products: Clipsal DALI Gateway
Square D’s Clipsal DALI Gateway provides an isolated two-way communications pat
h between a C-bus network and two DALI networks, enabling the C-bus to control and monitor DALI ballasts. The gateway continually monitors both DALI networks and can detect and report non-functioning lamps and ballasts.
Click here for more information.
Return to top
DALI-compatible products: Starfield digital control systems
Starfield Controls’ digital lighting system capabilities include fluorescent and incandescent dimming, web-
based occupant control, automatic and manual control, open- and closed-loop daylight harvesting, centralized lighting energy management, and integration with other building systems. The company offers system integration services, including application design, commissioning and user support.
Starfield offers modular controls such as addressable and programmable wall controls; ON/OFF, scene preset and dimming controls; curtain, shade and projector screen control; and pop-up interfaces for personal dimming via desktop computer. Other products and accessories include occupancy sensors and photosensors, routers and gateways (for connecting DALI systems with other building systems and also networking DALI systems together), digital ballasts, retrofit wiring system and incandescent dimming modules. Starfield also offers comprehensive system management software that provides group and individual configuration and control, hierarchical and room views, scheduling presets, energy monitoring and tenant billing, and lamp and ballast failure reports.
Click here for more information.
Return to top
DALI-compatible products: SYSC System Controller and SYPM DALI
The SYPM DALI module allows integration of DALI-compatible digital ballasts and controls with Lithonia’s Synergy lighting control system. SYPM, used in conjunction with the Synergy system enclosure and SYSC LMX controller, enables manual and automatic control of compatible devices on a DALI network. Connected DALI devices may be configured via the SYSC System Controller for status monitoring and prioritized control by any Synergy user interface, time-clock schedule or graphical workstation. The SYPM module can be combined with 0-10V, relay and line-voltage dimmer modules to create a complete lighting solution.
Click here for more information.
Return to top
DALI-compatible products: luxCONTROL lighting management system
Besides digital ballasts, Tridonic provides intelligent lighting control and management systems based on DSI
technology and the DALI protocol which can be combined to suit specific applications. smartDIM and switchDIM are also an option for simple control solutions such as intelligent individual lighting fixtures. The modularDIM system and comfortDIM systems concentrate primarily on controlling groups of light fixtures in halls and individual rooms respectively. proDIM, combined with winDIM@net lighting management software, has been designed for complex buildings. Every product line features specially adapted “modules” such as sensors, power supply systems, control modules or remote controls which interact with the control concept.
Click here for more information.
Return to top
DALI-compatible product: 750-641 DALI/DSI Master Module
Wago’s 750-641 DALI/DSI Master Module and power supply terminal enables the connection of up to 64 DALI slaves to the company’s building automation system.
Click here for more information (click “online catalog” from menu, then do a “power search” by keyword for “DALI”).
Return to top
DALI-compatible products: ezDALI, HDALIS4 Scene Select Controller, HDALIRLY Single-Pole Line-Voltage Contactor, DALI Occupancy Sensor Interface, DALI Occupancy Sensor Interface Daylight
Watt Stopper/Legrand’s ezDALI digital dimming and scene controls utilize the DALI communications protocol to provide full-featured, individual ballast-level dimming. Users create lighting environments (scenes) via push-button programming for a variety of common activities, then recall those scenes with the push of a
button. Comprised of wall-based controllers, a power supply, DALI ballasts and a communications databus, ezDALI provides 100%-1% dimming for linear fluorescents and 100%-3% for compact fluorescents. Designed to be simple to wire, commission and operate, ezDALI does not require software programming or other specialized commissioning tools. Push-button programming enables installers and users to set up and reconfigure the system as needed without rewiring. ezDALI is well-suited for conference rooms, lecture halls, classrooms, auditoriums and executive offices.
Additional DALI-compatible products include HDALIS4, a four-scene select controller; HDALIRLY, a 20A single-pole line-voltage contactor with a DALI-addressable input relay; the DALI Occupancy Sensor Interface (DOSI) for a three-wire connection to a low-voltage occupancy sensor and a three-wire connection to a momentary contact low-voltage raise/lower switch; and the DALI Occupancy Sensor Interface Daylight (DOSID) for a three-wire connection to a low-voltage occupancy sensor and a three-wire connection to the company’s LS-301 daylight photosensor. DIP switches provide for group assignment, automatic or manual on selection, daylight harvesting enable/disable.
Click here for more information.
Return to top

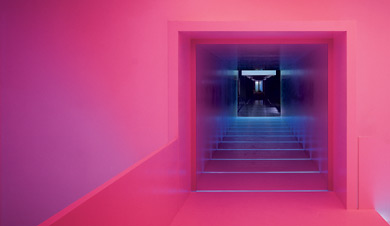

DALI-compatible products: LUXMATE lighting management system, LUXMATE PROFESSIONAL lighting management system, LUXMATE EMOTION lighting control system
LUXMATE provides a basic DALI control system that enables dimming, individual control and daylight
harvesting.
LUXMATE Professional takes the concept one step further by using a modular design to adapt to facilities of any size via open networked control. LUXMATE Professional can control lighting, blinds and thermal systems. It can interface with A/V systems and building management systems. The system enables daylight harvesting with a photosensor, individual control, and scheduling.
LUXMATE Emotion provides control of up to 2x64 DALI-dimmable light fixtures and spotlights. The respective fixture groups can be selected and individually configured quickly using clearly labeled touch panel buttons. Color sequences and effects can be configured intuitively by touch. Users can press any of the scene buttons to call up an individually configured light choreography or scene.
Click here for more information.
Return to top
LIGHT FIXTURES
While theoretically any light fixture can be specified with a digital ballast, the following companies offer products incorporating DALI-compatible ballasts:
DALI-compatible products: SeriesONE, Studio CycSeries
SeriesONE fixtures have been optimized for the use of energy-efficient fluorescent lamps for television broadcasting and videoconferencing applications. A variety of dimming options are available, including phase, DIMX and DALI, with linear dimming to 1%.
Studio CycSeries, a winner of NAB’s Vidy Award, consists of color-changing fluorescent fixtures that are dimmable to 1% through standard protocols including DMX-512 and DALI.
Click here for more information.
Return to top
DALI-compatible products: iGEN
Lightolier offers digital lighting control as an option across many of
its core light fixture products via its iGEN line. The following product families offer iGEN as an option: linear systems including Agili-T, Perflyte, Aleron, Spectral Architectural, Impressions, Eye-Q and Lytespread Alpha, LSB and LSC; recessed systems including Alter Video Teleconference, ParaPlus, Vision Smart, Mini-Beam, Coffaire, Wal-Lyter Walmaster and Lytecel; and compact systems including Calculite CFL Downlights/Wallwash, Pendalyte CFL and Pendalux CFL. For Agili-T and many other fixtures, iGEN provides intelligent sensor technologies built into the fixture for energy management purposes. Software is available, including programming software for system management and also web-based desktop user software for individual dimming control. Lightolier’s iGEN team also offers commissioning and staff training.
Click here for more information.
Return to top
DALI-compatible products: ETHOS, SPHEROS
Zumtobel recently added its Integral Daylight/Occupancy Sensor (IDOS) to its line of Ethos and Spheros T5 fluorescent light fixtures. The 2-inch-diameter sensor is connected to a DALI ballast, which provides individual control of the fixtures. The pre-programmed Plug-and-Play unit senses and responds to light levels in a room, and includes a remote control that can independently operate fixtures. The IDOS also detects motion in a room and turns lights on or off correspondingly.
Click here for more information.
Return to top
TRACK

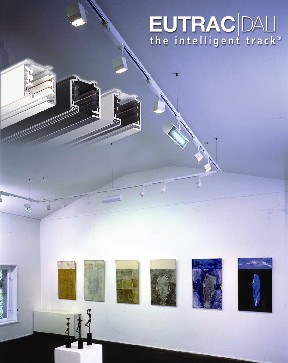

DALI-compatible product: EUTRAC|DALI Intelligent Tracklighting System
EUTRAC|DALI Intelligent Track systems represent a
breakthrough in track lighting by offering adapters that can be used with virtually any manufacturer’s track lighting fixture. This gives total freedom of specifying individual fixtures according to project design, aesthetic values and performance needs. EUTRAC specification-grade systems feature 120V, 2 Circuit/2 Neutral circuits. EUTRAC|DALI Intelligent Track also includes a data bus for easy integration with DALI, DMX and other digital protocols. Also available is the Light Composer software/hardware controlling system for custom dimming, scenes, interactive processes and automated sequences of up to 59 fixtures.
Click here for more information.
Return to top
EMERGENCY LIGHTING
DALI-compatible product: Emergency Lighting Products
Spire Lighting offers a complete line of DALI-compatible exit signs and emergency lighting fixtures.
Click here for more information
Return to top
DALI-compatible products: Complete line of emergency lighting products
Tridonic offers a complete line of DALI-based emergency lighting products.
Click here for more information
Return to top
